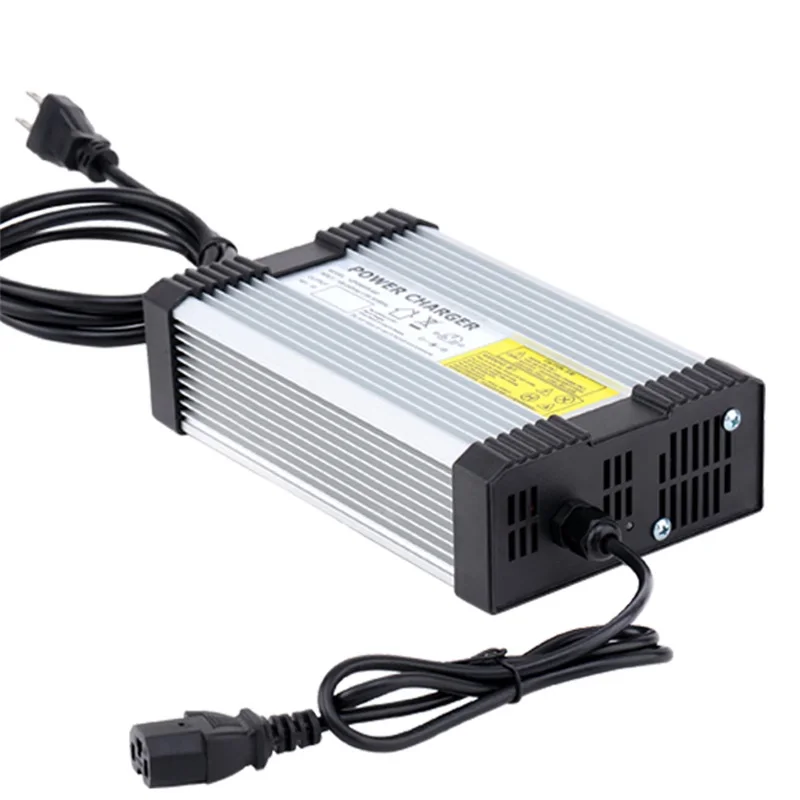

YZPOWER 54.6V 8A Lithium Battery Charger for 48V Lithium Battery Electric Motorcycle Ebikes
Please Leave Clear Words of The Input AC Plug And Output DC Plug,Like'AC:Number 5, DC:G',Especial 'E' And 'F',Otherwise Your Can't Be Sent,Thank You!!!
Note : E1:5.5*2.5*11mm,E2 :5.5*2.1*11mm; F1:5.5*2.1*11mm, F2:5.5*2.5*11mm
1 Material: ABS + PC
2 Charger Model: CC(constant current) CV(constant voltage)
3 Operating Temperature: -20~60 Degree
4 Storage Temperature: -40~+80 Degree
5 Operating Humidity: 20~90%RH
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Reverse Connection Protection
Dual Color LED Indicator:(Charging:Red; Fully Charged Or No Load:Green)
High Efficiency And Low Power Consumption
● Stable MTBF:> 30000 H
● Small Size: 205 * 121 * 50mm
● Light Weight: 1.2kg
● Material:Metal Aluminium Case
● After-sales service: 36months Warranty
● Protection function: Over voltage / Over temperature / Over current / Short circuit
● The indicator of LED: Red is charging, green is charge finished or prepare charging
● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged
and avoid over charge
1) Input and output filter electrolytic capacitor use withstand temperatures -40 to +105℃,with Low Impedance ,High reliability,Long useful life,High rip-ple capability,etc features.
2) Input Bridge KBP406 rectifiers Can withstand average Forward Rectified Current 4A,peak forward surge current 130A,Bl-ocking Voltage 600VDC
3) The main power transformer adopts EC40core, PC40 material,High efficiency, low iron loss,Enough power capacity,Have sufficient power margin.
4) Using aluminum heat sink,Good thermal design,can better cool the power device,Consistent with the principle of hot air flow,extend the service
Using SMD components,automated mass production by machine,Reduce manual errors, improveproduct quality.
Voltage conversion parts, With Cycle-by-Cycle Current Limiting, soft start function, with ESD Protection. Charge control circuit,Using precision voltage comparator,Precise control of the charging voltage and current,With overcharge protection,
over current protection,as well as output short circuit protection.
Tell us about your battery type, features,
Professional sales manager for you Offer,
transport, delivery period and other issues.
Let our professional engineers recommend
the right charger for you.
Products provide three-year warranty.
<8 hours response to customer complaints.
< 24 hours to propose a solution.
Professional engineers, unlimited number of
