Original Fuel Injector Tester EM276 Fuel System Scan Tool Injector Analyzer Car Auto Diagnostic Repair Tools With 4 Pulse Modes
EM276 Fule Injector Tester Fuel System Scan Tool Features
1.This tester can diagnose injector problems, you can use it on each injector
2.individually to test stuck, leaking or burnt-out.
3.It used 12V vehicle battery as power supply.
4.It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help
5.you identify the injector good or not when you switch off the engine.
6.The lock mode can ensure the testing condition is same.
7.It can work with any fuel pressure tester together.

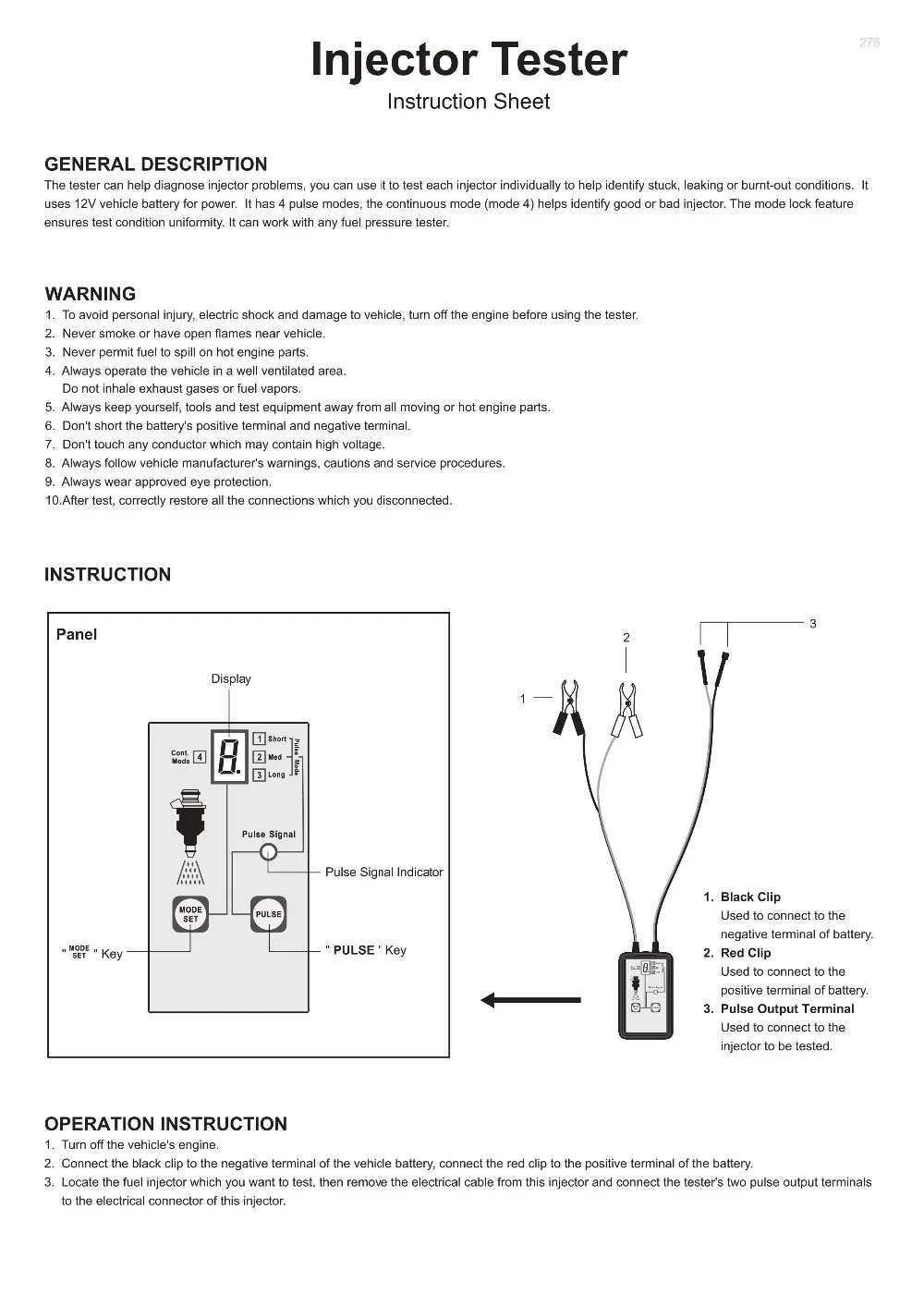

EM276 Operation instruction
Turn off the vehicle‘s engine
Connect Black / Red Clip to the Negative / Positive terminal of battery
Connect pulse output terminal to the fuel injector
Press the “MODE SET” key to select the desired pulse mode
Press the “PULSE” key, the tester will output pulse to the injector, and then the pulse signal indicator will light as indication
EM276 Explanations for 4 modes
Mode 1: the tester outputs 1 pulse, whose pulse width is about 250ms
Mode 2: the tester outputs 50 pulse, every pulse's pulse width is about 7ms
Mode 3: the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms
Mode 4: the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms,every pulse's pulse width is about 7ms
1 x Automotive Fule Injector Tester
